TruZoom from AJA Enables MLB Network to Telecast Dynamic Region-of-Interest Extractions From 4K Cameras
September 4, 2013

TruZoom from AJA Enables MLB Network to Telecast Dynamic Region-of-Interest Extractions From 4K Cameras

GRASS VALLEY, CA — AJA Video Systems has been working closely with MLB Network, Major League Baseball’s 24/7 cable TV network, to bring the soon-to-be-released AJA TruZoom software to market for highly detailed region-of-interest (ROI) extraction from 4K video.

The TruZoom application controls AJA's Corvid Ultra with TruScale hardware, which supports 4K/2K/UHD/HD/Dual-link and SD workflows to produce scaled output video at 1080p, 720p or 1080i. AJA's TruZoom software allows customers to rapidly keyframe scaled elements onto a timeline from 4K sources to deliver incredible image quality.

MLB uses AJA

"In sports production, replay clarity is paramount," said Brad Cheney, director of engineering, MLB Network. "Fans want a replay that is clearly definitive. With TruZoom, we can capture the entire image, then enlarge plays in the same frame, so viewers can verify for themselves how close the game of baseball can be when a runner steals a base or a ball flies over the fence. The 4K source imaging provides us an extraordinary look at the game of baseball, and the quality that AJA has been able to reproduce is far and away better than any other scaling solution we've seen."

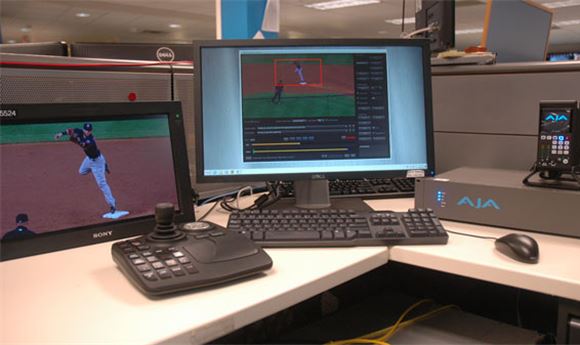

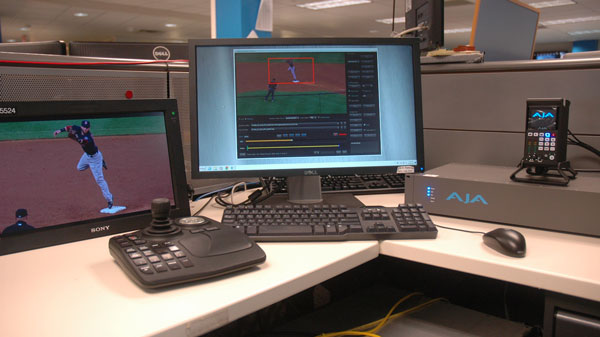

First tested in March 2013, TruZoom was deployed by MLB Network during a handful of regular season games in June, with plans to use the technology in the fall for two Division Series game telecasts. MLB Network's workflow involves capture with either a Canon C500 or a Sony F55 camera, shooting first base and second base on a preset. The camera signal is delivered over fiber to an OB truck where it's converted back to electrical video and plugged into the AJA Corvid Ultra with TruScale card, which is housed in a custom configured HP Z820 Dual Xeon 3.10 GHz workstation with an NVIDIA Quadro K4000 GPU, with record and playback facilitated via an internal SSD RAID array made up of eight Samsung 840 Pro 512 GB SSD drives connected to an Areca RAID controller.

"The best feature about the 4K imaging with TruZoom is that we can see close plays in a much better light than we've ever been able to before and offer our viewers an unprecedented look at the game of baseball," said Cheney.
